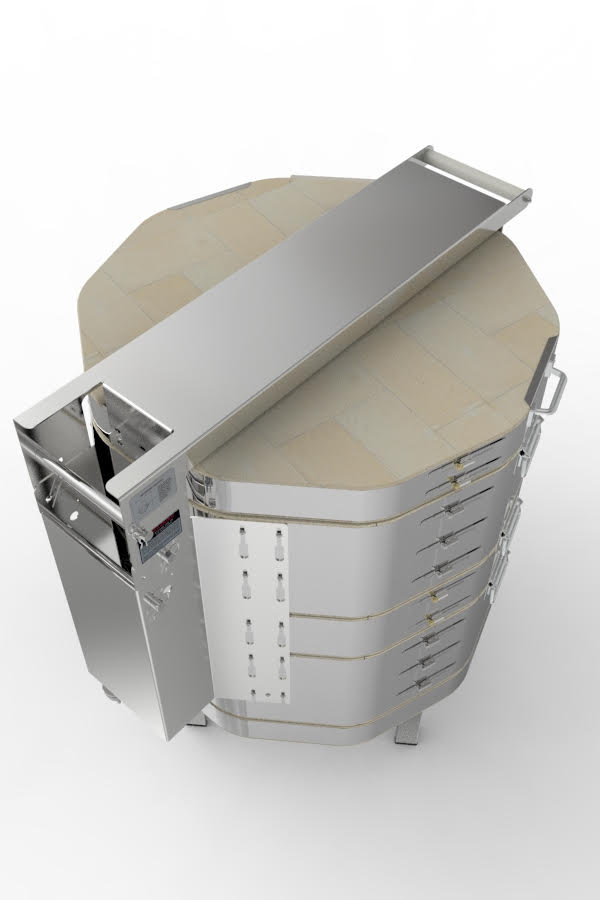

e23M-3 Pottery Kiln

Dhs. 24,670

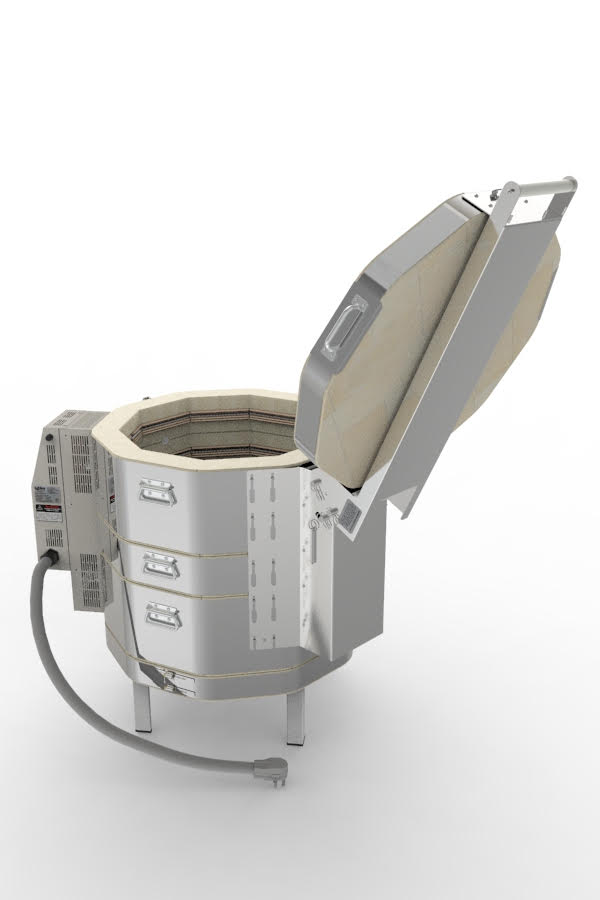

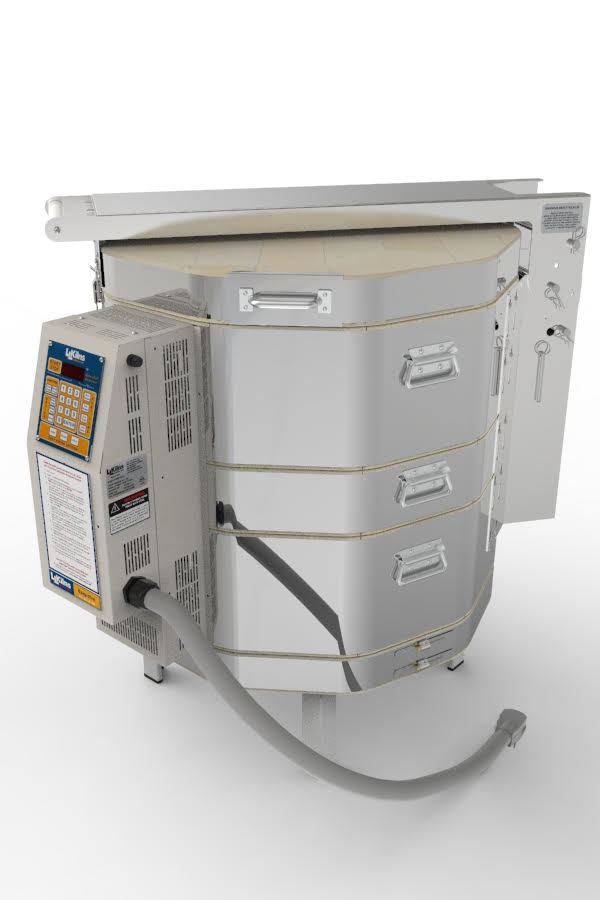

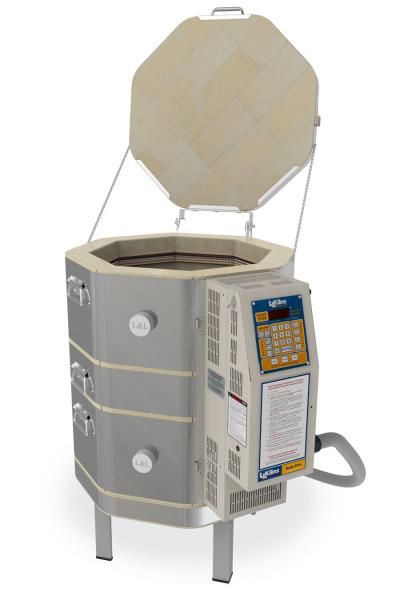

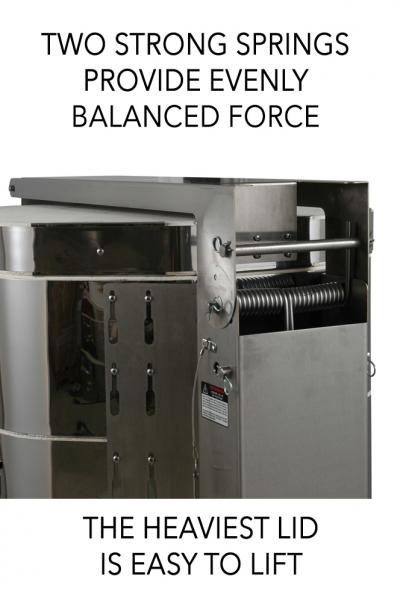

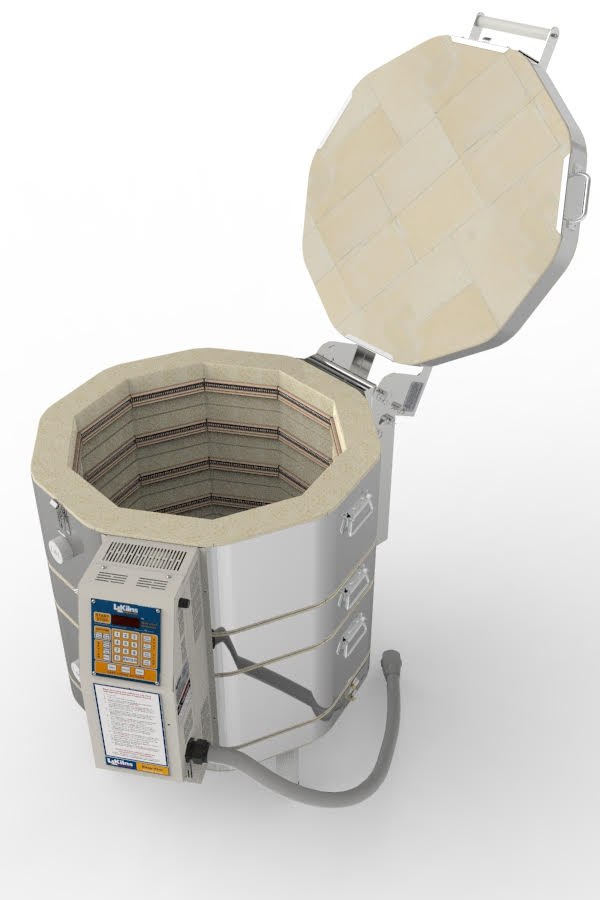

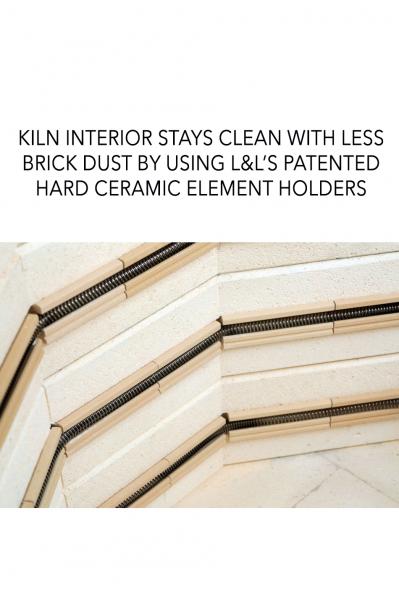

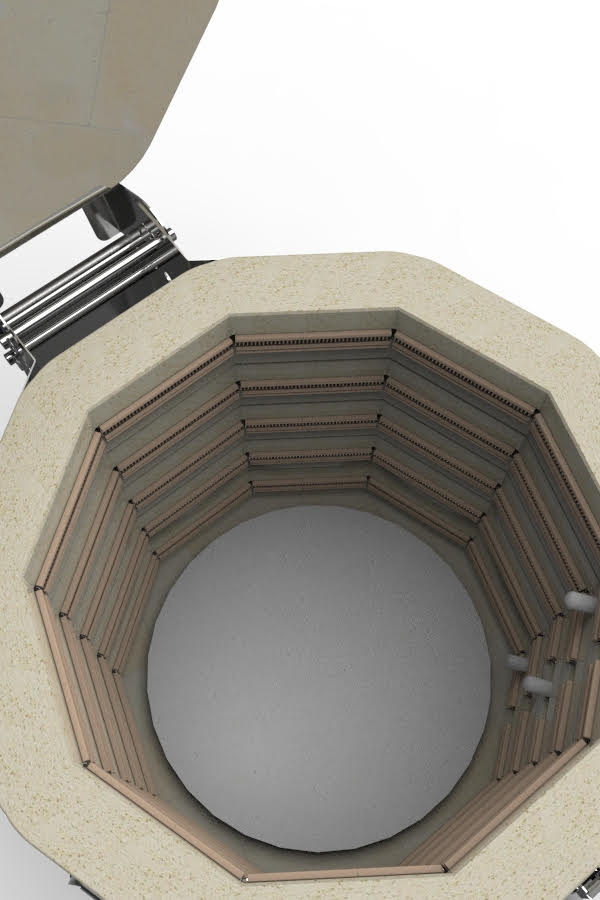

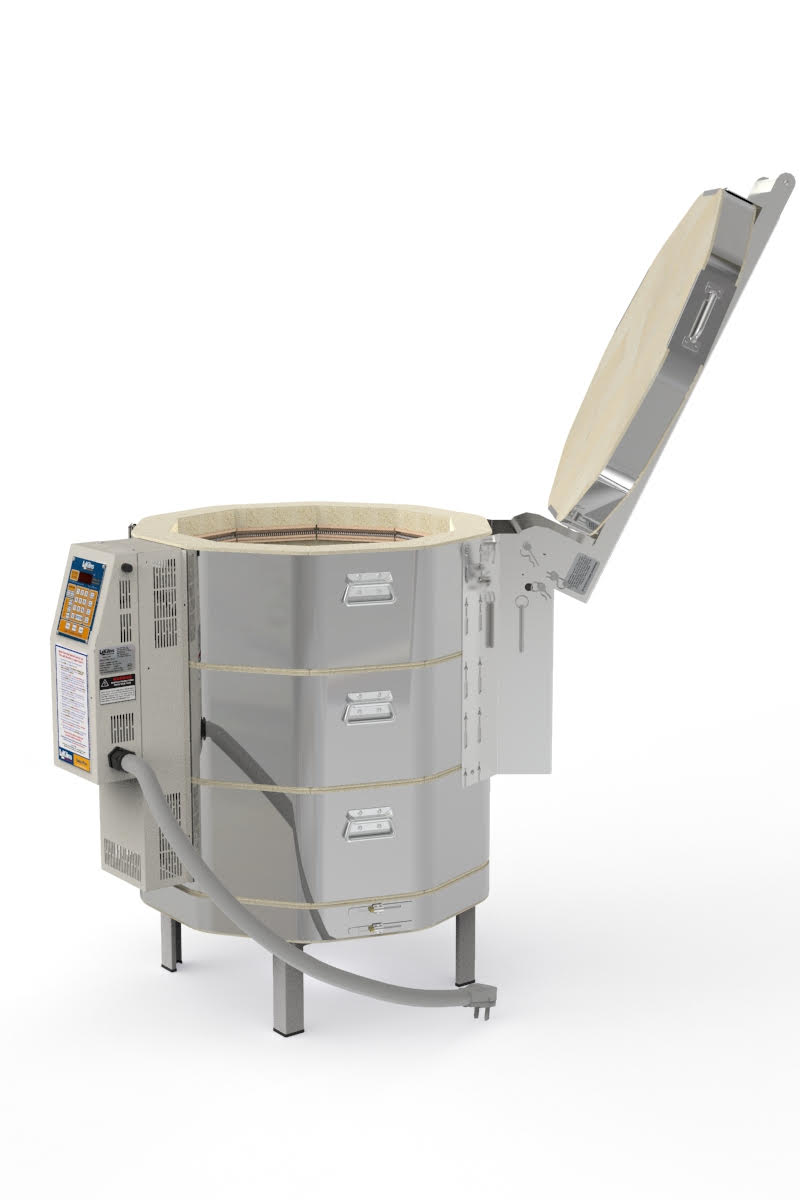

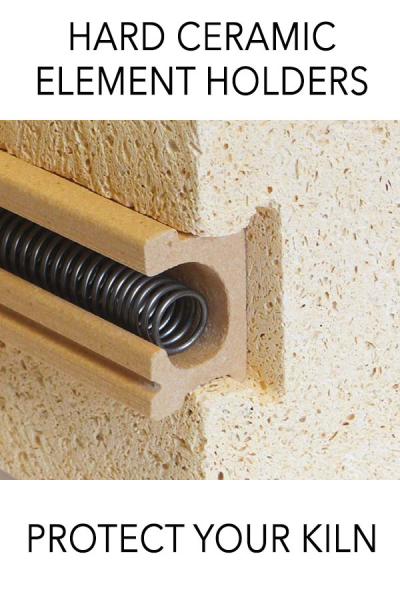

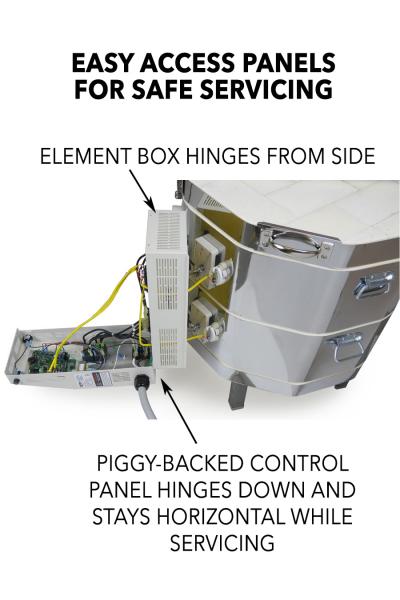

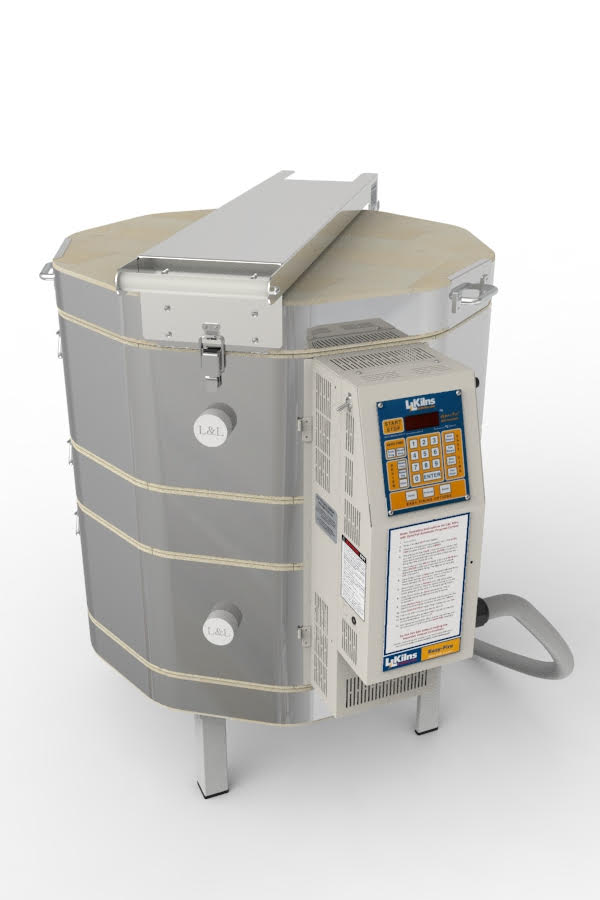

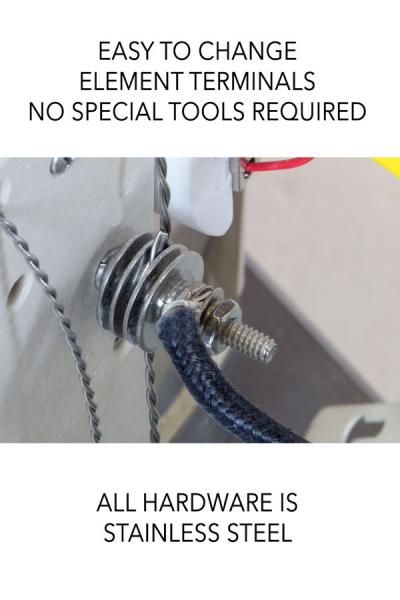

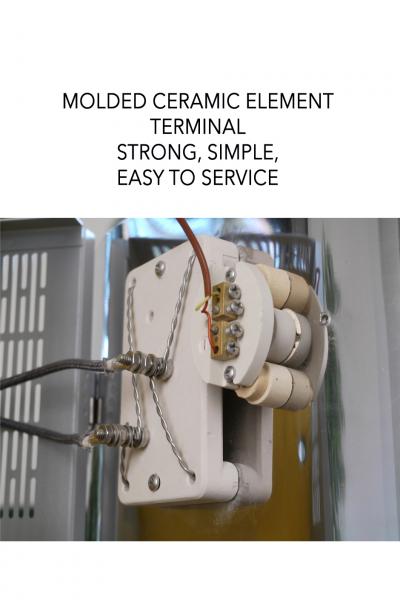

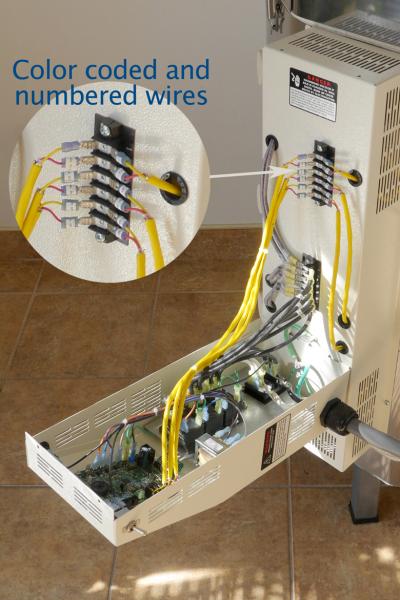

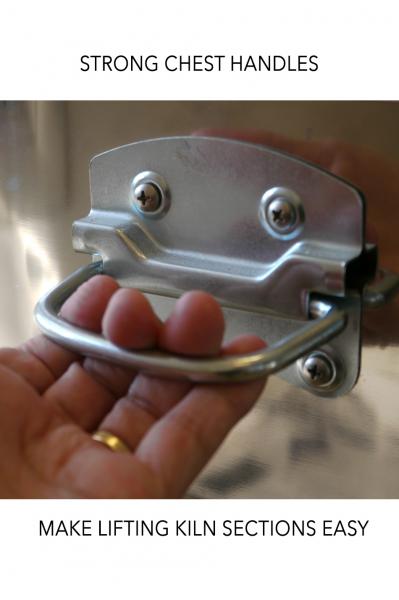

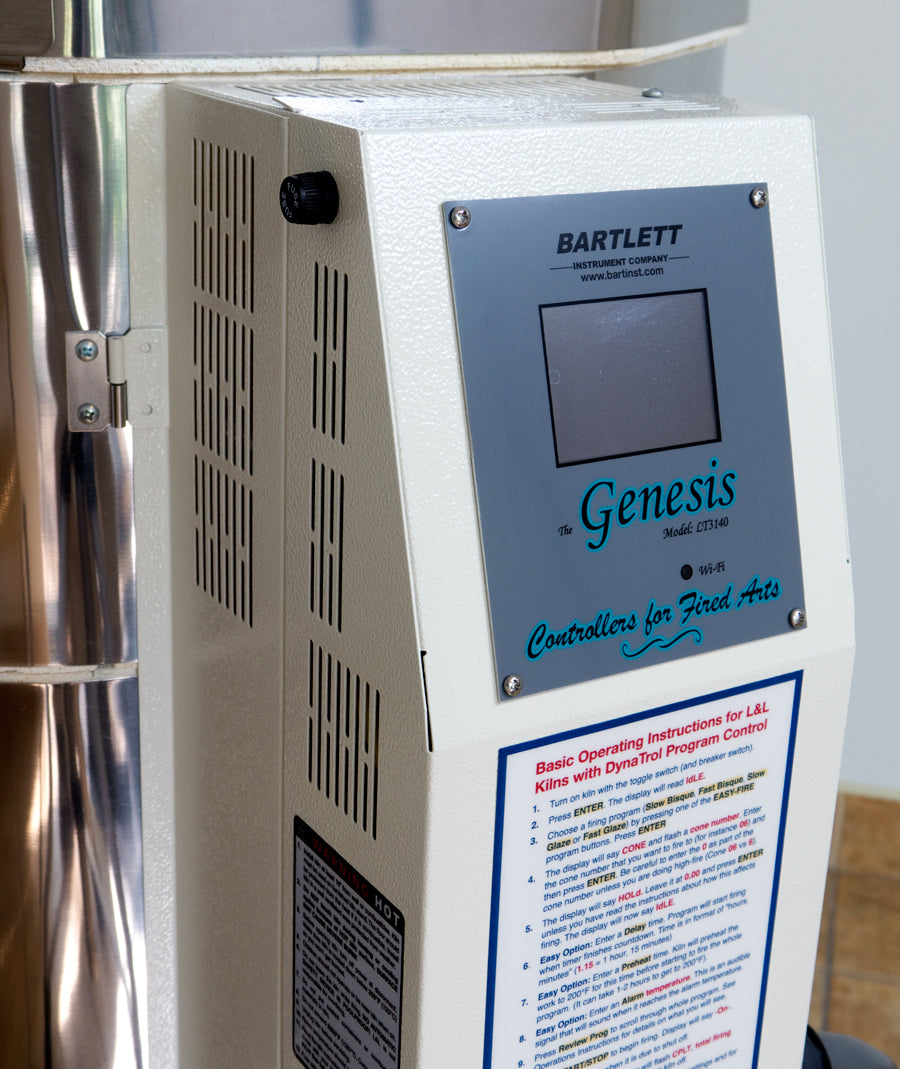

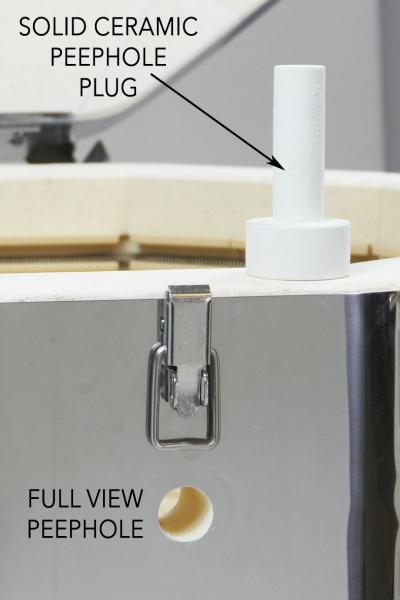

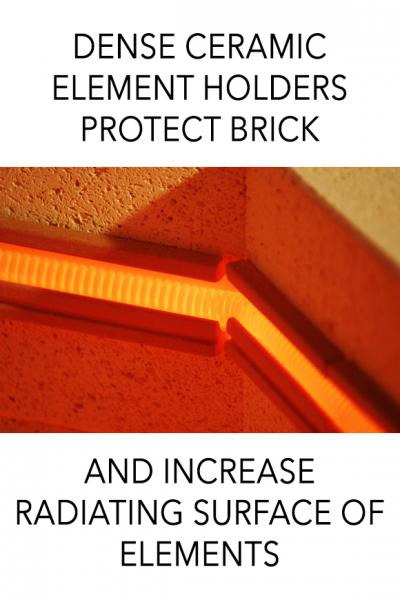

Model e23M-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 22.5" high (4.4 cubic feet) 125Litres . 3" K23 brick. Direct wire to 3 phase wye circuit.

All Easy-Fire Kilns include FREE Zone Control.

  • Insulation:

3" K23 Firebrick

  • Sections:

Two 9" high & One 4.5" high sections

  • Inside Dimensions:

22.30" Diameter x 22.50" High (56.642 cm Diameter x 57.15 cm High)

  • Outside Dimensions:

30.00" Wide x 40.00" Deep x 63.00" High (76.2 cm Wide x 101.6 cm Deep x 160.02 cm High)

  • Weight:

290 lbs (132 kg)

Additional Information:

  • Amps:9
  • Wire Connection:Direct wire (no plug) to a 380 volt, 3 phase wye circuit with a neutral and three power legs
  • Wire Gauge for Connection:10 Ga
  • Element Wiring:Parallel
  • Max Temperature:Cone 10, 2350F, 1290C

Features:

  • MEDIUM (4.5 CUBIC FEET)
  • DYNATROL ZONE CONTROL
  • CONE 10, 2350F, 1290C

SKU

Model Number

Watts

Volts

Phase

Fuse Size



K-E-23M3/52

e23M-3-380-3PY

11,520

380

3 Phase Wye

30 Amp

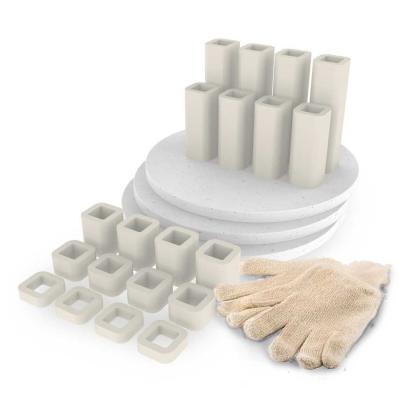

Kiln Furniture:

  • SHELVES:

ONE 20" FULL ROUND SHELF AND FOUR 20" HALF ROUND SHELVES (3/4" THICK)

One 51cm full round shelves and four 51cm half round shelves all 2cm thick

  • FURNITURE POSTS:

SIX EACH OF 1/2", 1", 2", 4", 6", & 8" HIGH 1-1/2" SQUARE CERAMIC POSTS

  six each of 1.3cm, 2.5cm, 5cm, 10, 15cm high; 3.8cm thick Square Ceramic Posts and includes heat resistant gloves

  • FURNITURE ACCESSORIES:

ONE PAIR HEAT RESISTANT GLOVES

Shipping:

  • Kiln with Furniture Kit:

48 IN Wide X 40 IN Deep X 57 IN High

 ( 122 CM Wide X 102 CM Deep X 145 CM High )

  • Ship Weight:

410 lbs (186 kg)

  • Packaging:

Skidded Carton with Foam-in-Place packaging

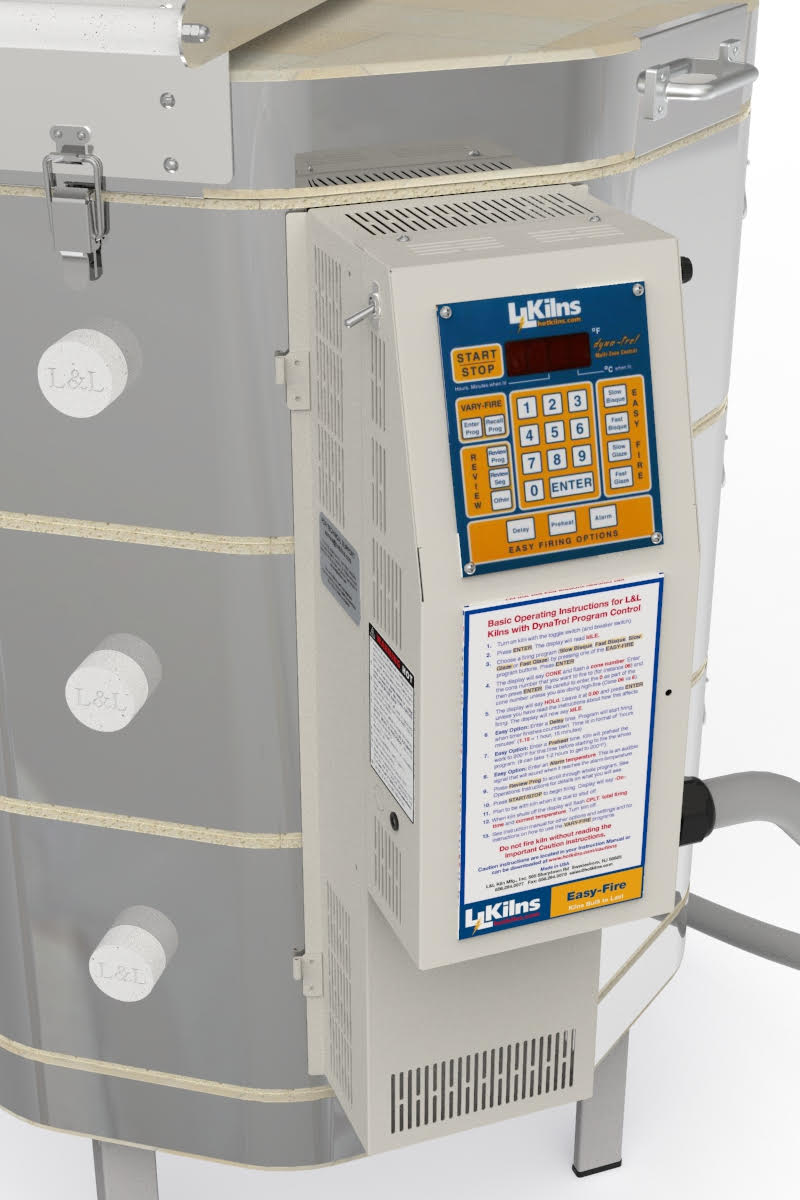

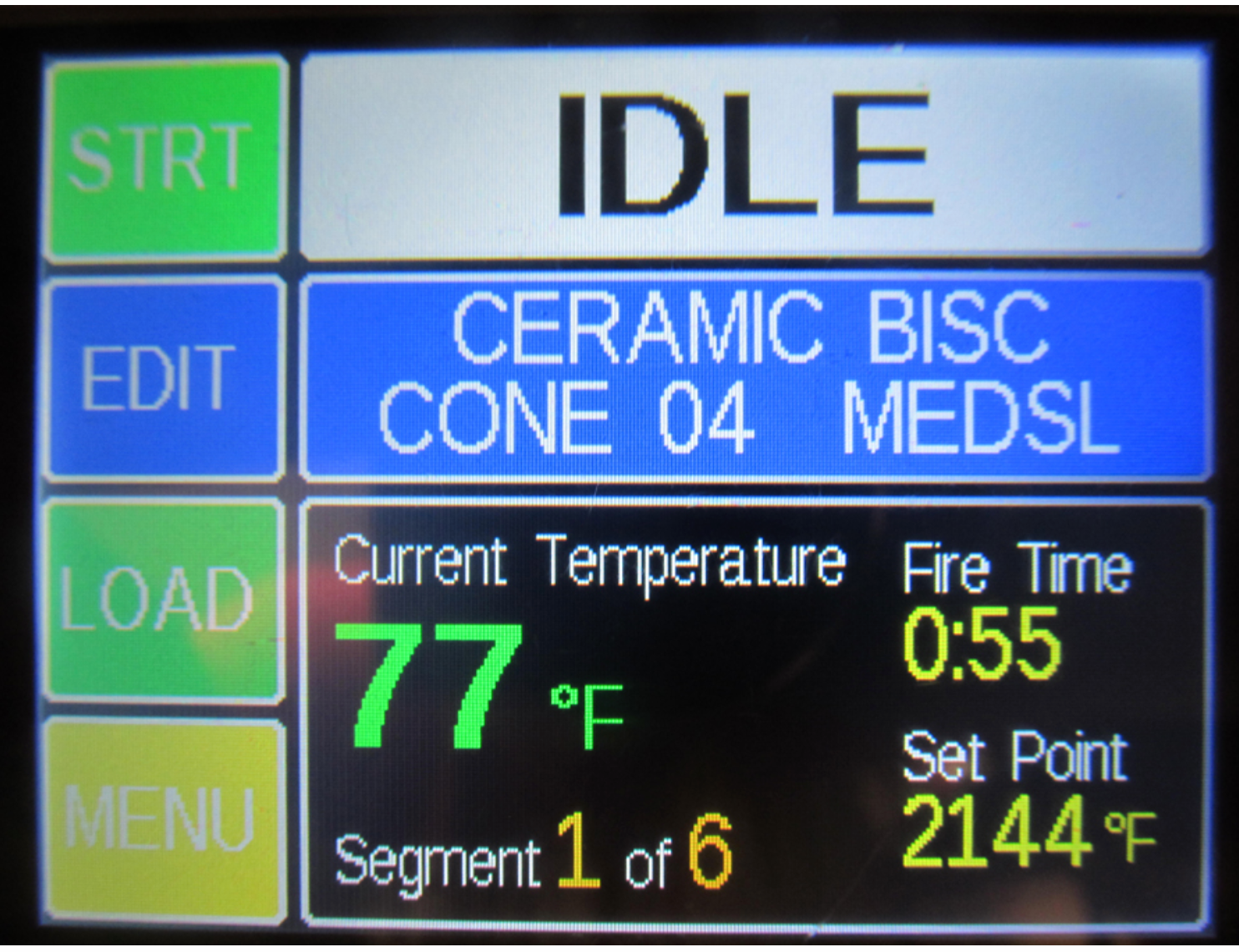

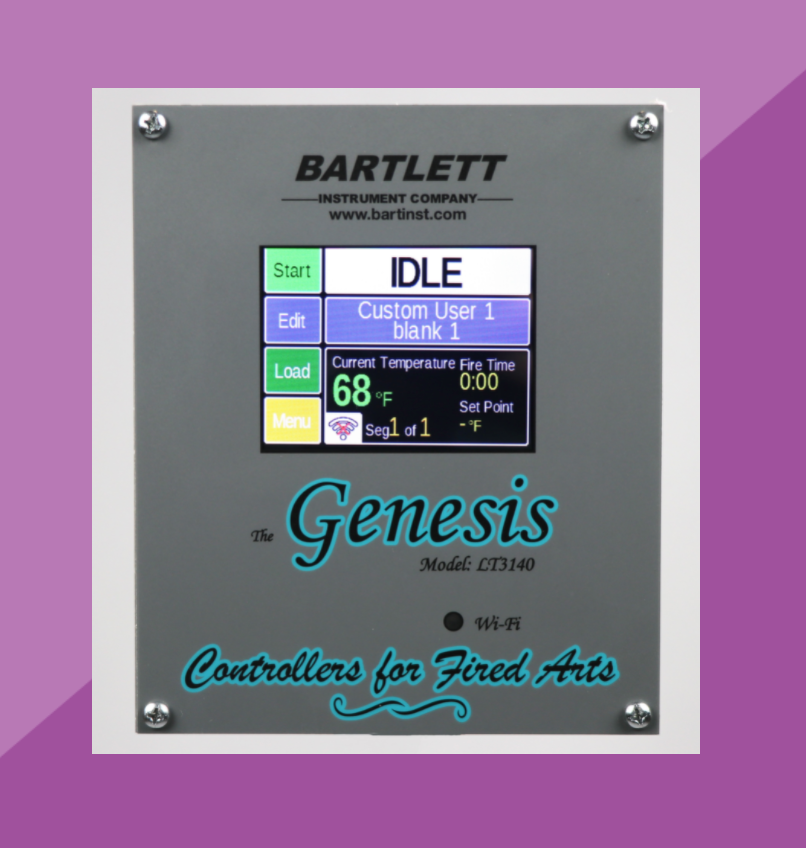

DynaTrol Multi-Program Zone Control

DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns

Main Features

Four Easy Programs

  • Slow Bisque, Fast Bisque, Slow Glaze and Fast Glaze preset program. Change the cone level and add a Hold time, Delay and Candling time if desired.

Six User-Defined Programs

  • Up to eight segment (with one ramp and soak per segment) in each program. Very flexible.

Delay Time

  • Control when kiln starts and stops.

Preheat

  • "Candling" fires kiln at 180°F for a time that you set.
  • Completely dry out ceramic work before the main cycle begins.

Hold

  • Control end of firing.
  • Hold the final temperature for a time that you control.

Cone and Thermocouple Offsets

  • Let you fine tune your firings.

Dynamic Zone Control

  • The DynaTrol features Dynamic Zone Control with three separate loops of control.
  • The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three separate heating zones even as the kiln is heating up.
  • Kiln temperatures are automatically evened out to within 1/2 cone or better top to bottom.
  • There are separate thermocouples (heat sensors) and contactors (power controls) for each of the three zones.
  • You may place your load to best advantage without regard to temperature differences.
  • There are adjustable offsets for each thermocouple which allows you to adjust uniformity within the kiln and match control performance with actual witness cones.

Other Important Features Of The DynaTrol

Four "Easy-Fire" Preset Firing Profiles

  • This makes it easy to fire ceramics.
  • Even people who are shy of programming can work with this control.
  • Slow Bisque, Fast Bisque, Slow Glaze and Fast Glaze all have time proven profiles for the vast majority of ceramic firing.
  • Just enter cone number and optional delay time, soak time, candling time and alarm.

Six User-Defined "Vary-Fire" Profiles

  • This allows you to have 6 separate repeatable stored programs with up to 8 segments (cooling or heating ramps, temperature setpoint and an optional hold time per segment).
  • The DynaTrol allows you to soak at a low temperature for a long time (i.e. you can have an automatic drying period) and then automatically ramp up to your high fire at different rates.
  • You can ramp slowly through critical periods or soak at end point temperatures for more consistent maturing of work. It also allows a controlled cool-down to avoid heat shock.
  • You can link two of these profiles to make one 16 segment program.

Controlled Cool down After Easy-Fire Program

  • It is possible to link a Vary-Fire program that controls the cool down of the kiln to the end of an Easy-Fire program.
  • This allows you to use the great Orton software that adjusts the final set point of the kiln based on heat-work but still be able to control your cool down for large work or for maturing glazes properly.

Cone Offset

  • This allows you to match the "Easy-Fire" cone set points to your real firing experience.

Program Review

  • See the entire program before or while running it.

Segment Review

  • Lets you review the segment you are on.
  • Also shows you what your current set point is during the program as it is changing.

Audible Temperature Alarm

  • This can alert you at any point in program.
  • For instance the control can alert you that the kiln is close to maturity so you can watch it reach final set point or use it to tell you when to turn off the vent.

Change of Program During Firing

  • Make adjustments as needed.

Last Temperature Reached

  • This is shown at end of Easy-Fire program.

Cone/Temperature Equivalent Look Up Table

  • Convert cone numbers to degrees.

Dust-Sealed Panel

  • Graphically numeric keypad makes programming easy.

Error Checking can be turned off

  • Error checks include stopping program if kiln is rising too slowly or if one zone is 100°F off set point as well as other error checks.

Automatic Restart

  • This occurs after brief power interruption with alert. Control logic determines whether it is better to continue or shut down.

Thermocouple Burnout Protection

  • Kiln shuts down automatically if all thermocouples burn out. Kiln continues to fire if one or two thermocouples burn out.

Two Key Start

  • Optionally configure the control so it requires you to press two buttons to start it.

Digital Indication

  • Configure temperature in either degrees F or C.
  • Scroll through all three thermocouple readings to see what each zone is doing.

Cold Junction Compensation

  • Automatically compensates for varying ambient temperatures to make control more accurate.
  • Control can operate in ambient temperatures of 32°F to 125°F (0°C to 50°C).
  • Segment review button lets you see ambient board temperature.

Electronic Control Matches Pyrometric Cone Performance

  • This feature, licensed from Orton (Patent 4,461,616 & 4,730,101), adjusts the final temperature reached in an Easy-Fire profile based on the speed of the actual firing.
  • It results in accurate automatic control of heat-work in ceramic firing.

Number of Zones is Programmable

  • You can easily change the control from a three zone to a two or even single zone control.
  • This is useful on L&L's unique sectional kilns where you can remove or add sections.
