L & L

TEST KILN Plug-n-Fire

Sale priceDhs. 9,492.00

LEAD/SHIPPING TIME: 11-13 Weeks

    KEY SPECS
  • Small (0.33 cubic feet) 9.34 litres
  • Genesis Mini Touchscreen Control

  • Includes Genesis-Mini Touchscreen Control
    Cone 10, 2350F, 1290C

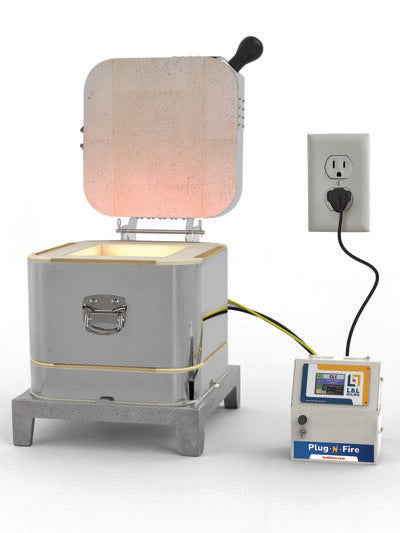

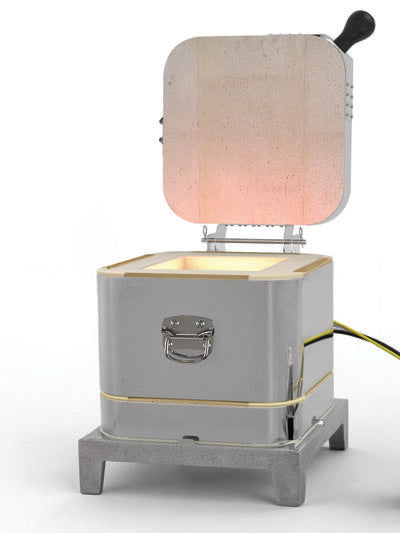

    Model PF8 Craft/Test Kiln with a Genesis Mini Touchscreen Controller

    • 8" Square x 9" High (0.33 cu ft)
    • This kiln can fire to Cone 10 on a standard 15-amp circuit, and draws only 12.5 amps
    • Extra-insulated sides with 2-1/2" K23 brick and 1" of backup insulation; Top & Bottom are 3" K23 brick

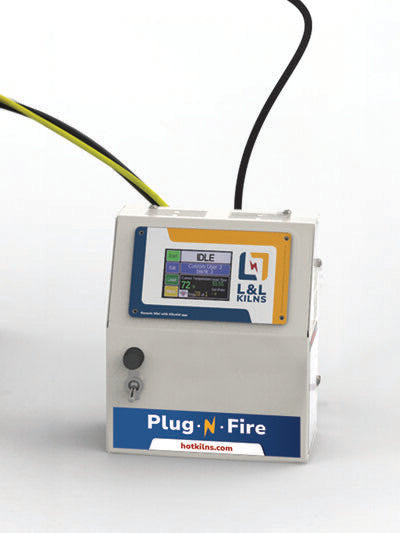

    • Kiln plugs into a separate control panel with power and thermocouple wire jack
    • Door safety switch shuts off power to the elements when the door is opened
    • Hard ceramic element channels
    • Includes one 7" by 7" by 3/8" shelf and three 3" posts
    • Insulation:
      2-1/2" K23 Firebrick & 1" 1900 Back-Up Insulation on sides, 3" K23 Firebrick on top & bottom
    • Sections:
      One section
    • Inside Dimensions:
      8.00"Wide x8.00"Deep x9.00"High
    • (20.32 cm Wide x 20.32 cm Deep x 22.86 cm High)
    • Outside Dimensions:
      16.00" Wide x19.00" Deep x 20.00" High (40.64 cm Wide x 48.26 cm Deep x 50.8 cm High)
    • Weight:
      77 lbs (35 kg)

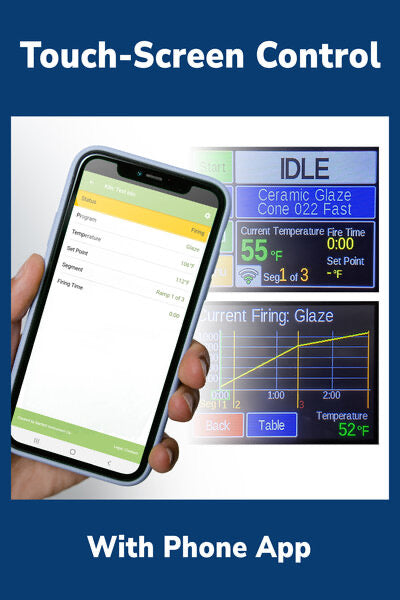

    Genesis Touch Screen Control
    The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.

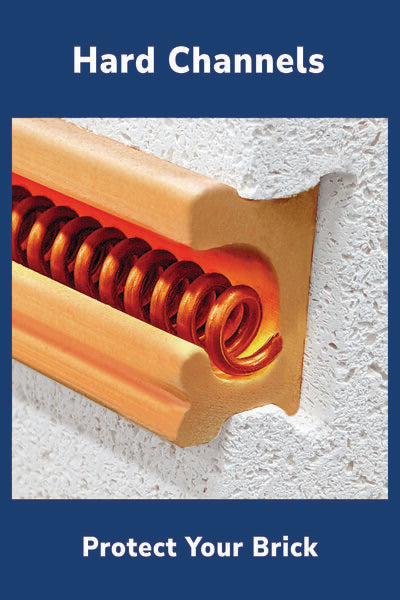

    Hard Ceramic Element Channels
    NO PINS TO REPLACE AND DAMAGE YOUR FIREBRICK! Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.

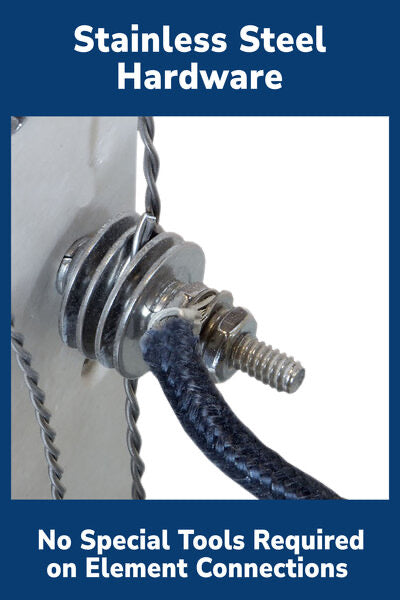

    "No Crimp" Ceramic Element Connections
    NO CRIMPING! EASY TO CHANGE. Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers. Wires are not crimped to element ends as in some other brands. This means you can change elements yourself without buying an expensive tool or hiring a kiln repair person.
    Heavy-Duty Type K Thermocouples
    HEAVY-DUTY. Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
    FULL SUPPORT STAND. Aluminized stands are solid and corrosion-resistant. They offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.
    Three-Year Limited Warranty (Standard)
    THIS IS REALLY IMPORTANT WHEN YOU CONSIDER THE ELECTRONIC CONTROL. Most L&L Kilns have a three-year limited warranty.
